Mechanical Fuel Systems

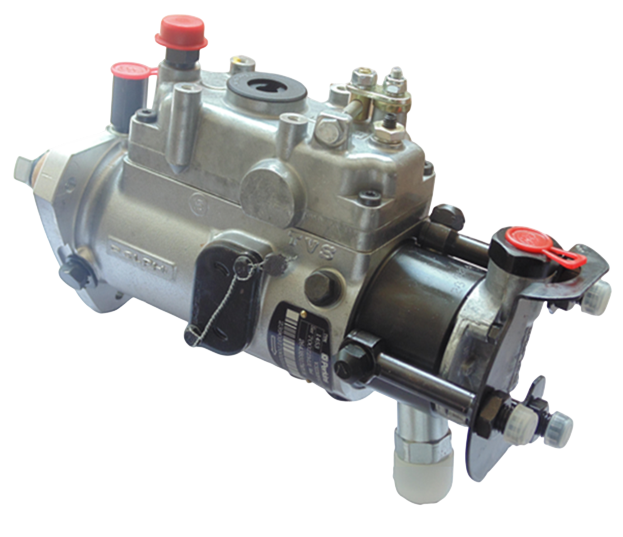

ROTARY
Features
- Designed for generator set & fixed speed applications
- Suitable for engines of 3, 4 & 6 cylinders
- 2 or 4 plungers with 600 bar pumping pressure capability
- Improved governor wear components
- Transient stabiliser for good stability margin
- Inbuilt electrically operated ON/OFF mechanism
- Adjustable governor droop control option
- Governing performance to ISO 8528-5 Class G2
Benefits
- Easy integration for Auto START / STOP operation
- Balanced delivery between cylinders and hence less noise
- Minimized performance deterioration over life with wear resistant design
- Switchable 50 & 60 Hz operation
- Provision for plug-in electronic governor conversion

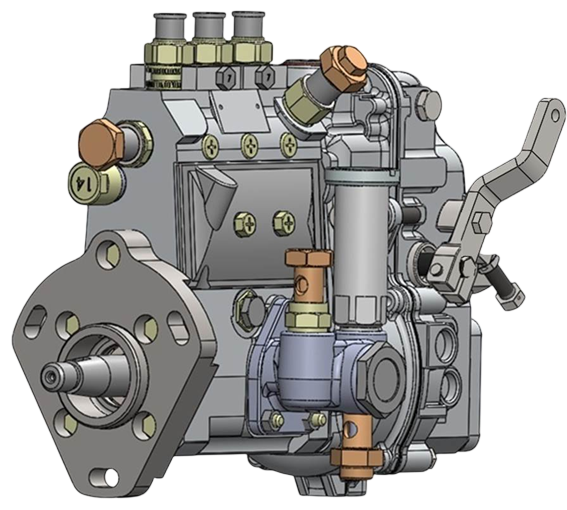

INLINE Pump
Features
- Suitable for multi cylinder engines
- Trem3A emission compliance for off highway
- 600 bar pumping pressure capability
- Mechanical flyweight all speed RSV governor
- Shim type pre stroke adjustment
- Special plungers with speed or load advance options
- Pump parts lubricated by Engine lube oil
- Leak return slot on plunger to minimize lube oil dilution
- Torque adaption capsule for flexible curve shaping
- Torque adaption capsule for flexible curve shaping
- Excess fuel for easy starting
- Lock shaft timing option with +/-0.50 pump degrees
Benefits
- Ease fitment of pump on engine with no fuel spillage
- Consistent engine performance with minimal timing variation
- Less fuel consumption / better mileage with special groove plungers
- Negligible wear on Tappet assembly and hence no frequent adjustment required
- Lube oil maintenance not required and managed by engine oil circulation
- Tappet roller designed feed pump, enhanced life and requires less attention
